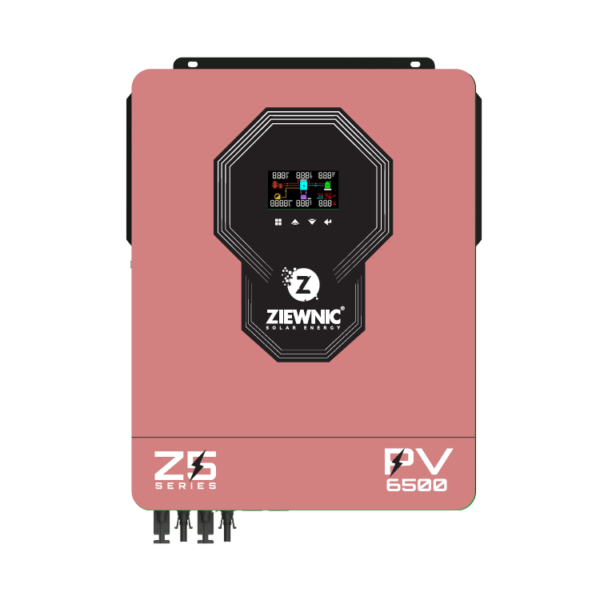

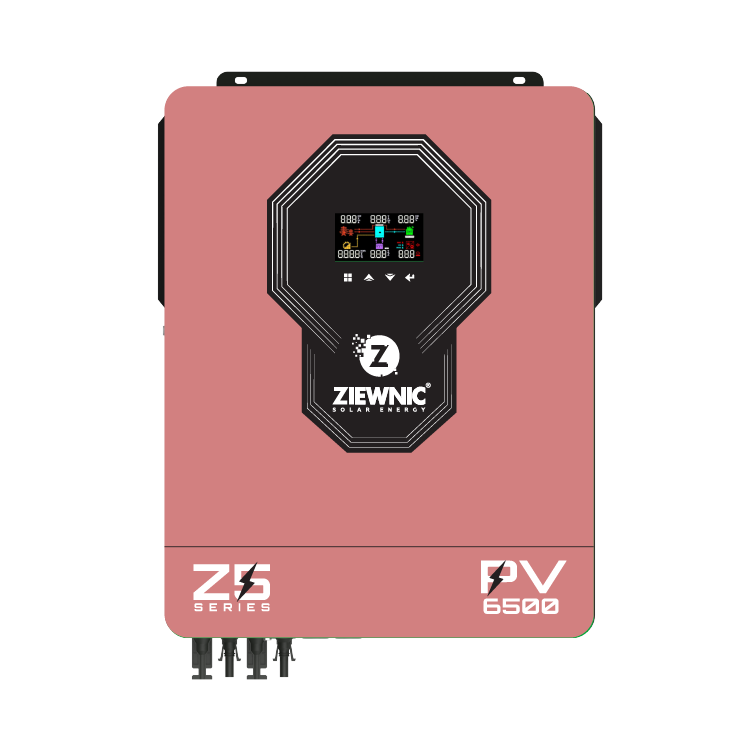

This advanced 1-phase hybrid solar inverter delivers 4500W rated output with full grid-tie and off-grid support.
It supports a maximum 6500W solar PV input and features dual MPPT trackers with 32A parallel input.
Efficient power conversion includes a 98% DC-to-AC efficiency and pure sine wave output at 220/230/240VAC.
Surge handling up to 9000W ensures performance under heavy load.
It offers smart load management with a main load of 4500W and second load up to 1500W in battery mode.
Input voltage range is wide (90-280VAC), with auto-restart at 180VAC.
Compatible with 24VDC battery systems and offers 180A solar and 100A AC charging.
Multiple communication ports (RS232, WIFI, GPRS) ensure easy monitoring and control.
Compact in design (420×310×110mm) and lightweight at 14.2kg.
Reliable operation in extreme temperatures from -10°C to 50°C.
